v belt pulley

v belt pulley

v belt pulley

Payment Terms:	T/T Or D/P,Negotiable
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 20M

Production Capacity: 100000 Pcs Per Month

Delivery Date: 10 Days

Certificate: ISO9001:2000

Means of Transport: By Sea/By Air/By Express Ma...

Packing: Carton

Brand Name: Beidi

Export Area: Europe, North/south America...

Productivity:100000 Pcs Per Month;Min. Order:1 Pcs;Packing:Carton;Transportation:By Sea/By Air/By Express Mail;DeliveryDate:10 Days;PaymentType:T/T O

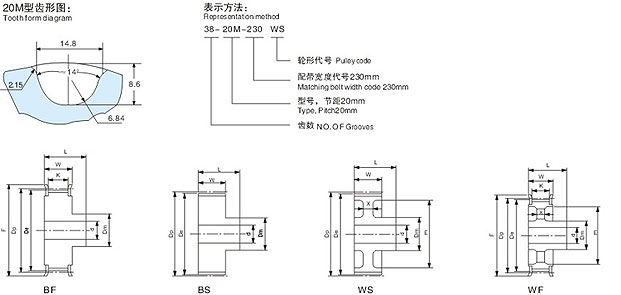

20M Type
Pulley code WS
Matching belt width code 230mm
Pitch 20mm
No.OF Grooves 38

20M Standard belt width 230mm
Spcfctn	Z	Shape	Dp	De	W	L	1K	X	Dm	d	E	F	M	F
34-20M	34	B/W	216.45	212.13	250	283	240	-	165	32	-	240	165	F-40240165
36-20M	36	B/W	229.18	224.87	250	283	240	-	178	32	-	250	178	F-40250178
38-20M	38	B/W	241.92	237.60	250	283	240	-	181	32	-	265	190	F-40265190
40-20M	40	B/W	254.56	250.33	250	283	240	-	203	32	-	275	203	F-40275203
44-20M	44	B/W	280.11	275.79	250	283	240	-	210	32	-	300	228	F-40300228
48-20M	48	B/W	305.88	301.26	250	283	240	-	228	32	-	325	254	F-40325254
52-20M	52	B/W	331.04	326.72	250	283	240	-	228	32	-	350	279	F-40350279
56-20M	56	B/W	356.51	352.19	250	283	240	-	228	32	-	375	305	F-40375305
60-20M	60	W	381.97	377.65	250	283	240	40	228	38	318	405	330	F-40405330
64-20M	64	W	407.44	403.12	250	283	240	40	228	38	343	430	356	F-40430356
68-20M	68	W	432.90	428.58	250	283	240	40	228	38	366	455	382	F-40455382
72-20M	72	W	458.37	454.05	250	283	240	40	228	38	392	480	407	F-40480407
80-20M	80	W	509.30	504.98	250	283	240	40	280	38	445	530	457	F-40530457
90-20M	90	W	572.96	568.64	250	283	240	40	280	38	508	595	521	F-40595521

20M290mm
					W	L	1K	X
34-20M	34	B/W	216.45	212.13	305	343	295	-	165	32	-	240	165	F-40240165
36-20M	36	B/W	229.18	224.87	305	343	295	-	178	32	-	250	178	F-40250178
38-20M	38	B/W	241.92	237.60	305	343	295	-	181	32	-	265	190	F-40265190
40-20M	40	B/W	254.56	250.33	305	343	295	-	203	32	-	275	203	F-40275203
44-20M	44	B/W	280.11	275.79	305	343	295	-	210	32	-	300	228	F-40300228
48-20M	48	B/W	305.88	301.26	305	343	295	-	228	32	-	325	254	F-40325254
52-20M	52	B/W	331.04	326.72	305	343	295	-	228	32	-	350	279	F-40350279
56-20M	56	B/W	356.51	352.19	305	343	295	-	228	32	-	375	305	F-40375305
60-20M	60	W	381.97	377.65	305	343	295	42	228	38	318	405	330	F-40405330
64-20M	64	W	407.44	403.12	305	343	295	42	228	38	343	430	356	F-40430356
68-20M	68	W	432.90	428.58	305	343	295	42	228	38	366	455	382	F-40455382
72-20M	72	W	458.37	454.05	305	343	295	42	228	38	392	480	407	F-40480407
80-20M	80	W	509.30	504.98	305	343	295	42	280	38	445	530	457	F-40530457
90-20M	90	W	572.96	568.64	305	343	295	42	280	38	508	595	521	F-40595521
